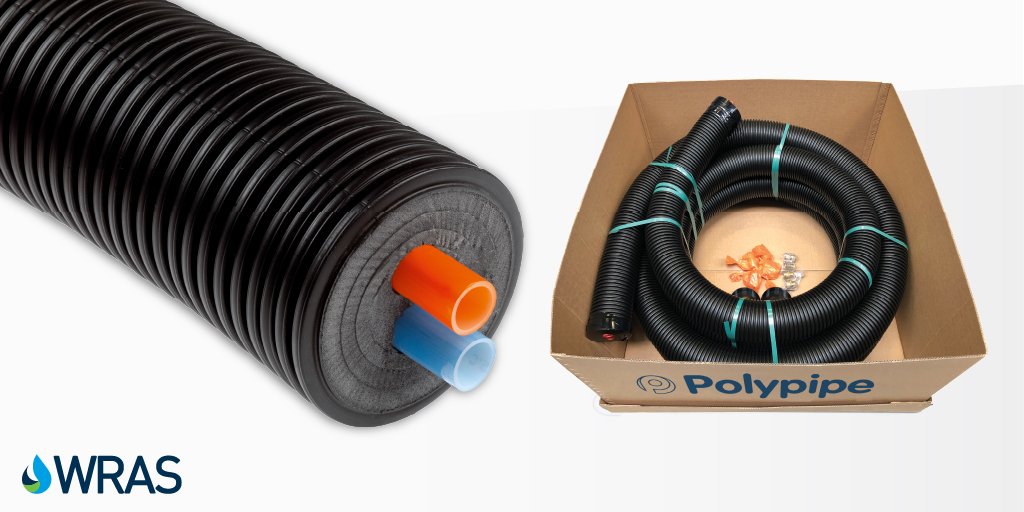

As the UK transitions to low-carbon heating, the efficiency of the external pipework is as critical as the heat source itself. Polypipe’s Pre-Insulated Pipe range is specifically engineered for renewable applications, including Air Source Heat Pumps (ASHP) and Ground Source Heat Pumps (GSHP), providing a hyper-flexible, durable, and thermal-efficient solution for heat networks.
The Hyper-Flexibility Advantage
Traditional rigid insulated pipes require complex expansion loops and heavy machinery. Our polyethylene system is designed for "Hyper-Flexibility," offering:
- Rapid Routing: Effortlessly navigate around bends, existing obstacles, and through wall penetrations.
- Self-Compensating Design: The inherent flexibility eliminates the need for external expansion compensation.
- Simplified Tooling: No welding or specialist heavy tools are required for connections.
- Modular Assembly: A comprehensive system of couplings and accessories ensures a fast, safe, and leak-free installation, significantly reducing on-site labour costs.
Engineered for Long-Term Durability

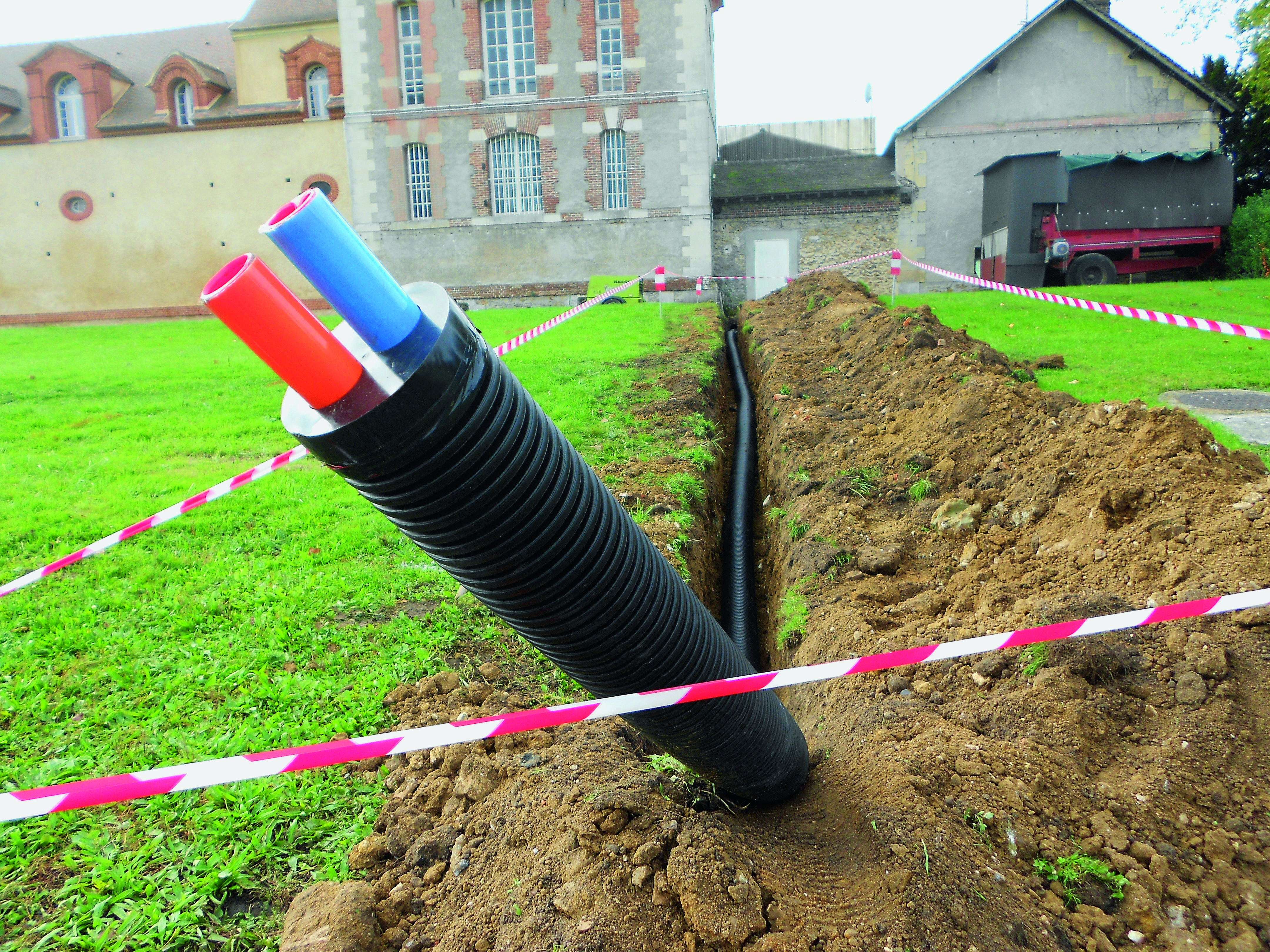

Our pipes are built to withstand harsh subterranean environments while maintaining peak thermal performance.
- Advanced Insulation: Features hyper-flexible PE-X thermal foam with a closed-cell structure. This ensures a high μ factor (water vapour diffusion resistance) for long-term insulation integrity.
- Double-Wall Protection: A unique HDPE outside casing provides high resistance to impact and external pressure.
- PE-Xa Carrier Pipes: Corrosion-free and chemically resistant, these pipes offer maximum resistance to stress-ageing and temperature swings, even under high pressure.
- Thermal Separation: An integrated pipe divider ensures effective separation between flow and return (inlet and outlet) pipes to prevent thermal "short-circuiting."
Choosing the Right Configuration
Polypipe Building Products offers four distinct variants to suit varied project requirements:
| Variant | Best Use Case |
| Single | Dedicated flow or return for large-scale heat networks. |
| Double | Combined flow and return for residential ASHP/GSHP connections. |
| Quad | Integrated heating (flow/return) and sanitary hot water (flow/return) in one casing. |
| Sanitary | Dedicated potable or non-potable hot and cold water supply. |
Technical Specifications
- Material: PE-Xa carrier pipe with PE-X foam insulation.
- Casing: HDPE.
- Application: Suitable for potable water, district heating, and cooling networks.
- Standards: Manufactured to ensure high resistance to micro-biological degradation and environmental stress.
