Soil and Vent Systems | High-Performance Above Ground Drainage

High-performance PVC-U soil systems, engineered for BS EN 1329-1 & BS EN 1453-1 compliance, and reliable flow performance.

Polypipe Building Products Soil and Vent Professional Installation

System Connectivity: Transitioning from Appliance to Sewer

Polypipe Soil Drainage Professional Installation

A high-performance soil system creates the crucial link between internal waste management and underground drainage. Our systems are engineered to ensure smooth, efficient discharge transitions at every stage.

  • WC Pan Connectors: A comprehensive range of rigid and flexible pan connectors complement our Soil range, simplifying installation in both new build and RMI projects.
  • Waste to Soil Transitions: Seamlessly integrate 32mm, 40mm, and 50mm waste pipes into 82mm, 110mm, and 160mm main stacks using high-integrity boss connections.
  • Soil to Drain Transitions: Connect the vertical stack to the underground drainage network with ease, utilising specialised bends and adaptors.

PolySoil & System 2000: Product Range and Specifications

Explore our range of push-fit (ring seal) and solvent weld soil fittings, designed for residential soil installations.

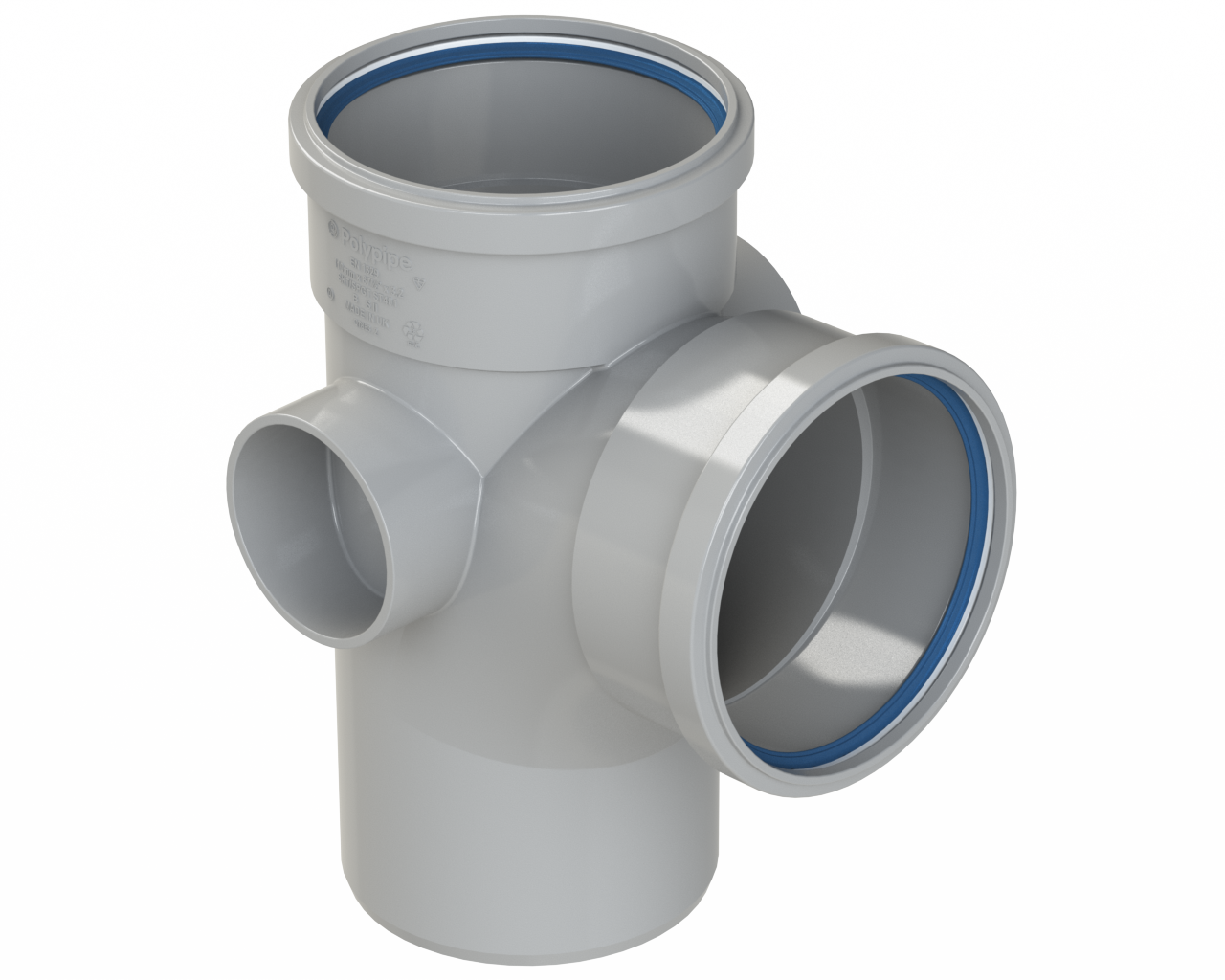

Polypipe Building Products SU420G 110mm 87.5 Deg Double Branch in Grey

PolySoil® | Push-Fit (Ring Seal) System

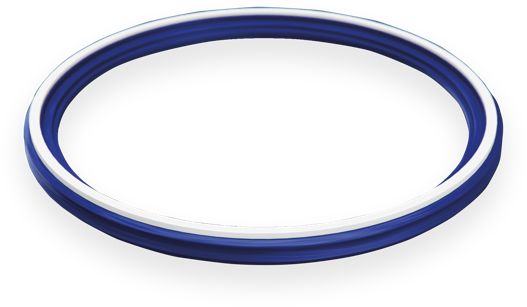

Engineered for rapid, secure installation. Featuring our Ring Lock Seal technology, designed to maintain seal integrity during pipe insertion.

  • Sizes Available: 82mm, 110mm and 160mm
  • Colours: Grey, Black and White
  • Applications: Vertical stacks where thermal movement is expected.
View Product Range

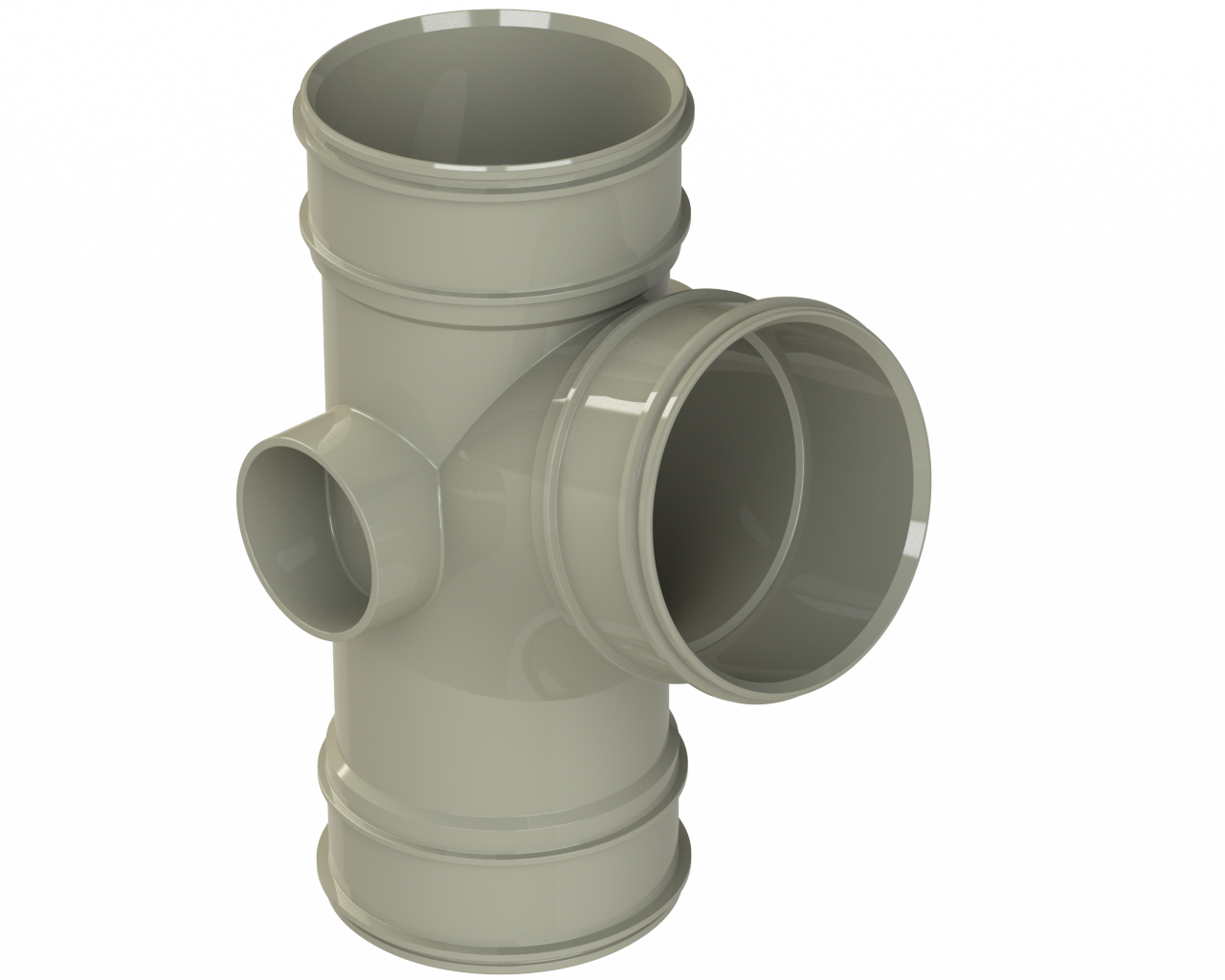

Polypipe Building Products SWU424SG 110mm x 87.5 Deg Triple Socket Double Branch in Solvent Grey

System 2000 | Soil & Vent (Solvent Weld) System

A permanent jointing system utilised in high-demand applications or external stacks where maximum mechanical security is required.

  • Sizes Available: 82mm, 110mm and 160mm
  • Colours: Black, White and Solvent Weld Grey
  • Applications: Permanent installations and light commercial infrastructure.
View Product Range

Choosing the Right Soil System: Application Guide

PolySoil® (Push-Fit System) System 2000 (Solvent Weld System)
Primary Project Type Suitable for standard domestic housing and RMI projects. Designed for installations requiring high-integrity chemical bonding.
Installation Access Suitable for areas designed for inspection and routine maintenance. Suitable for enclosed areas where permanent, maintenance-free connection is required.
Adjustment Needs Designed to allow for joint adjustment during installation or future modification. Formulates a permanent, unified bond between components upon installation.
Speed & Efficiency Rapid assembly utilising a ring-lock seal. Requires a multi-stage cleaning and cementing process.
Barratt Homes Doncaster Site Kingsville House Render
CASE STUDY

Polypipe Building Products provides one-stop-shop for Barratt Homes

"By working closely with the developer and its assigned contractors, we were able to supply at volume a high specification system suitable for use at each stage of required water management."
- Giles Coombes | Category Manager - Above Ground Drainage

Technical Specifications

Meeting Approved Document H

Our soil and vent systems are engineered to support compliance with Approved Document H (Drainage and waste disposal).

Part H1 Requirements:

Optimised swept branches and boss entries facilitate efficient foul water discharge and help mitigate cross-flow.

Ventilation Strategy:

Air Admittance Valves (AAVs) may be utilised to equalise system pressure and protect trap seals.

Material Compliance & Standards

Polypipe Building Products soil systems are manufactured to the highest industry standards to ensure total reliability for residential projects. The system is fully compliant with:

BSI Logo BSI Kitemark

BS 4514:2001, BS EN 1329-1, BS EN 1453, BS 5627: The highest performance classification for unplasticised PVC soil and ventilating pipes, for soil and waste discharge, for structured wall pipes for soil and waste discharge and for plastics connectors for use with horizontal outlet.

FREE Design Consultation

Our expert in-house team are ready to support your project.

We understand that accurate planning is essential for efficient and cost-effective above ground drainage. That’s why we offer a comprehensive Private and Adoptable CAD Design and Parts Take-Off Service.

For homeowners, developers, contractors, and specifiers.
Request a FREE Consultation

Frequently Asked Questions

Soil and Vent Installation: Connectivity and Standards

How many toilets can be connected to a 110mm soil stack? +
In accordance with Approved Document H (Drainage and waste disposal), a 110mm primary ventilated soil stack serves up to 30 dwellings. A 110mm branch pipe typically serves up to 8 WCs at a minimum gradient of 1:110.
Why is it critical to chamfer the cut end of a soil pipe before insertion? +
When pipe is cut to length, the edge can be rough or square-edged. If not chamfered using a specialised file or rasp, the sharp edge may snag, displace, or slice the internal rubber seal during insertion. A properly chamfered end ensures the pipe slides smoothly into the socket without compromising the integrity of the seal.
What are the requirements for supporting a soil stack vertically? +
To prevent structural deflection and ensure long-term integrity, vertical soil stacks must be supported at the base of the stack and then by pipe brackets at maximum 1.8 metre intervals. In multi-storey installations, additional support is required at every floor level to manage the cumulative weight of the pipe and effluent.
Can I install a soil pipe horizontally? +
Yes, but strictly within the constraints of Approved Document H (Drainage and waste disposal). Horizontal pipework must be installed at a suitable gradient, typically 18mm per metre for 110mm pipe, to ensure self-cleansing velocity. Installing pipework completely level results in standing water and silt build-up, which increases the risk of blockages and adds unnecessary structural load to the brackets.
Can an Air Admittance Valve (AAV) replace a traditional vent? +
Yes. An AAV allows air into the system to equalise pressure and protect trap seals without requiring a hole in the roof. However, regulations usually require at least one open vent in the system at the head of the drain to allow for the escape of sewer gases. Up to 4 AAVs can be used before an open vent is required.
How do you connect modern plastic soil pipe to a legacy cast iron stack? +
Use our Universal Soil Adaptors (SP140). These feature a finned rubber seal that pushes directly into the cut end of a cast iron pipe, providing a modern 110mm push-fit socket for a gastight transition between legacy and modern materials.
Why is the Swept entry required in a soil branch? +
A swept entry, or curved inlet, guides the discharge into the vertical stack smoothly. This prevents cross-flow, where waste from one branch enters the opposite branch, and helps maintain the airflow required for pressure balance.
